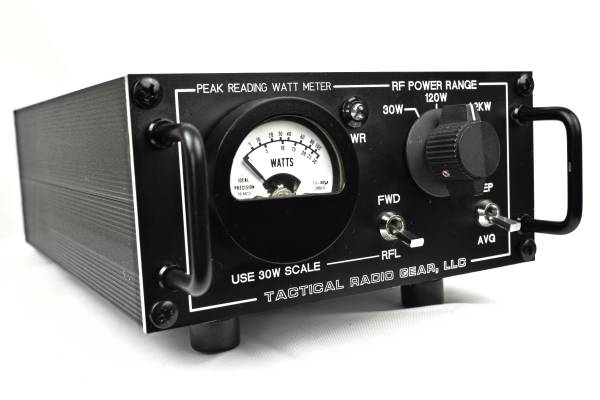

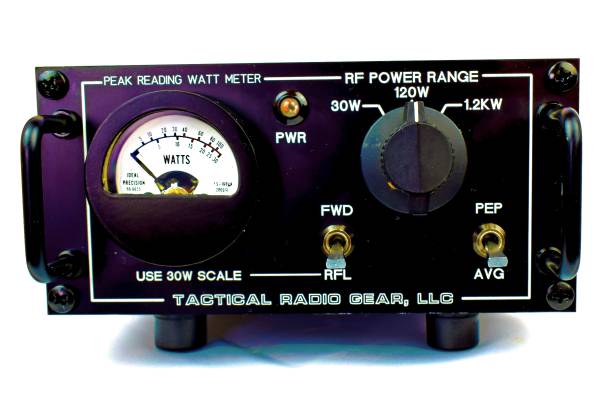

The TACCOM-SPECOP, is a Commercial/Military-Grade RF power measuring Watt-meter. The TACCOM-SPECOP, is the next generation of Portable/rugged Watt meter’s.
The SPEC-OP Watt Meter, is field expedient, versatile, and rugged; this compact Power meter is at home in your mobile, RV, Camper, your boat; as well as a park-bench at your favorite location.
Using a taut-band meter movement; the unit meets military standards for shock and vibration.
The SPECOP watt meter(s), offer commercial/military reliability, that professionals and Amateur radio operators need; it’s hard to beat the value and performance that this compact rugged Watt-Meter provides.

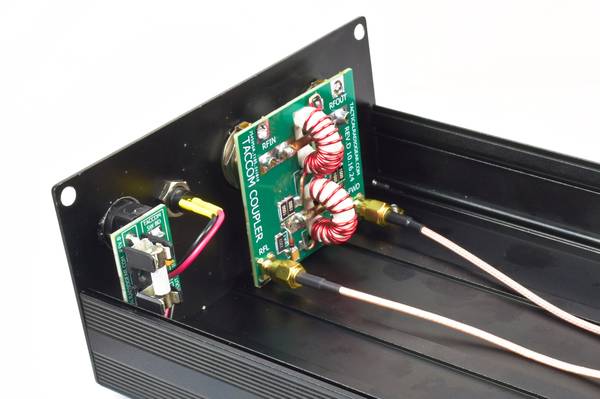

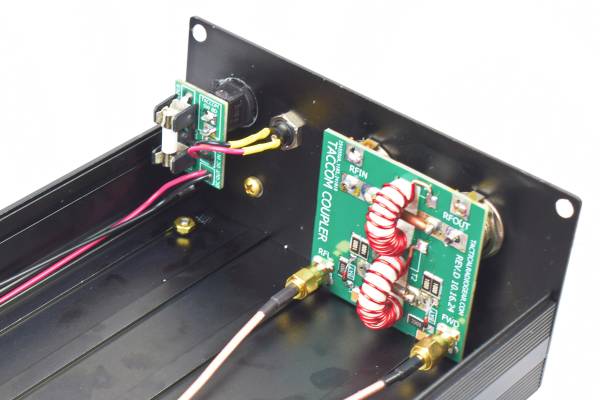

Don’t let the size fool you. This design features an instrument grade Directional-Coupler; based on the Stockton configuration.

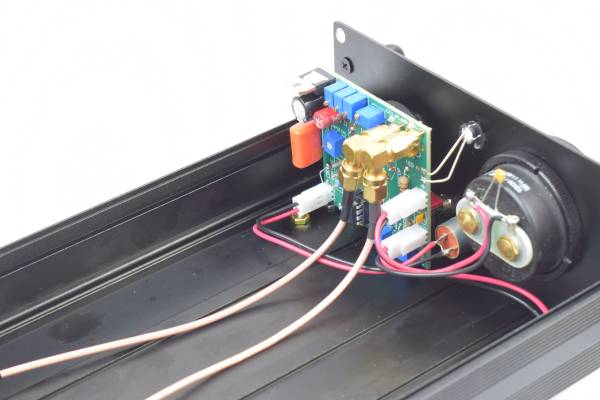

The PCB & circuit design, use high tolerance surface mount components; and the high-performance BAT series of Schottky diode(s).

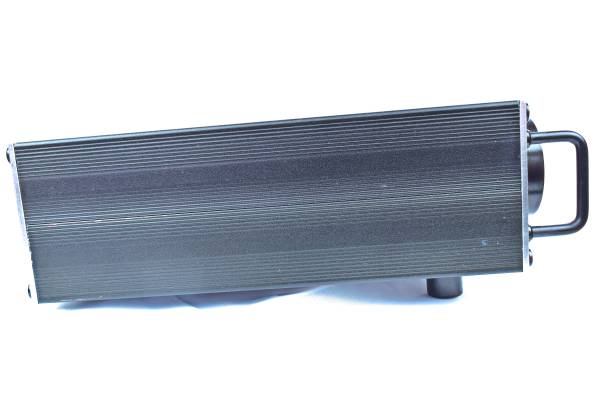

The SPECOP unit, is housed in an extruded, heavy-duty aluminum enclosure, and anodized for for durability.
The SPECOP unit, features a true [PEP], peak-reading function, for TRUE SSB measurements; for [Average] & [Peak] power readings.
Rugged, ready and reliable. The SPECOP Watt-Meter, is a multipurpose; wide-range Peak-Reading RF power meter.
Tactical Radio Gear, LLC., Watt Meter(s) provide the essential information, to monitor transceiver & amplifier performance.
With three power ranges (30W/120W &1.2KW), the SPECOP can satisfy both QRP and high-power operations; from HF to VHF, with ultra-fast, Dynamic Peak Reading Instrumentation grade class of performance.

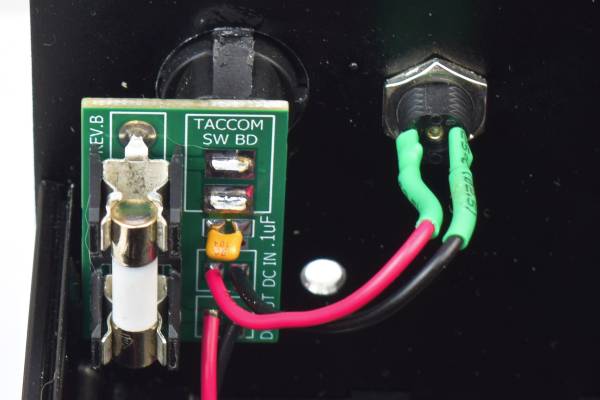

The SPECOP unit is powered by a provided 12 VDC power cord, or the provided wall transformer.
For mobile installations, an optional shock-mount bracket is available.
Specifications:
Frequency range: 1.8 MHz to 150 MHz
Power Range: 30W/120W/1.2KW
Functions: Forward/Reflected, Peak/Average

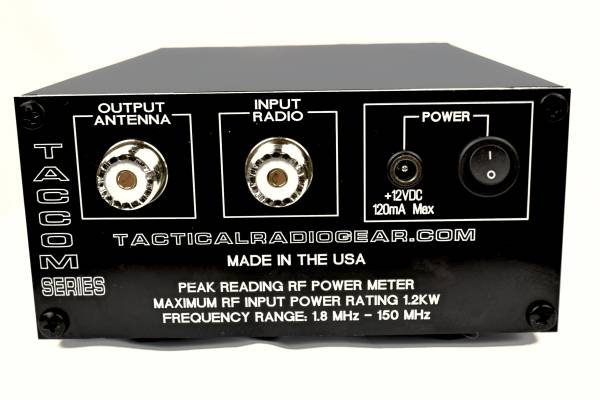

Connector type: UHF Female/SO-239, N Type available at no additional cost.
Input Voltage: 12 VDC – 14 VDC @ 200mA max
Size: 2.750” H X 5.750” W x 8.00” D
Weight: 2Lbs.
OPTIONS:
Mobile Mounting Bracket
